It's almost 5 years since FinalBuilder 7 was released. Since it's release we have shipped 44 official updates, nearly every update including new features or improvements. This program of continuous improvement has worked well, with customers not having to wait for major new versions to arrive to get support for new versions of Visual Studio or Delphi etc, but it has limited our ability to make major changes. So it's time for a new major version of FinalBuilder.

What's new in FinalBuilder 8

IDE Themes

The IDE has two new themes, Dark and Light (yes, imaginatively named!). The IDE defaults to Dark on first run, however you can change the theme in the options quite easily. The themes are still a work in progress, we are waiting on an update from a third party control vendor to resolve some issues.

IDE Light theme IDE Light theme



Debugger

One of the most asked for features now available in FinalBuilder 8, stepping into included projects. In FinalBuilder 7 and earlier, you could only step over included projects, and wait for them to return. In FinalBuilder 8, you can step into the included project, if it is not already opened the IDE will open the project and switch to it automatically. To make this possible, there are now "Step Into" and "Step Over" functions. The Step into/over now also applies to targets (see below).

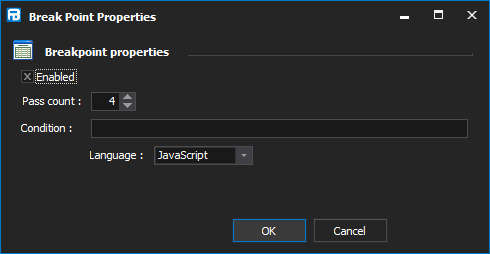

Debugger breakpoints now have conditions :

IDE Light theme

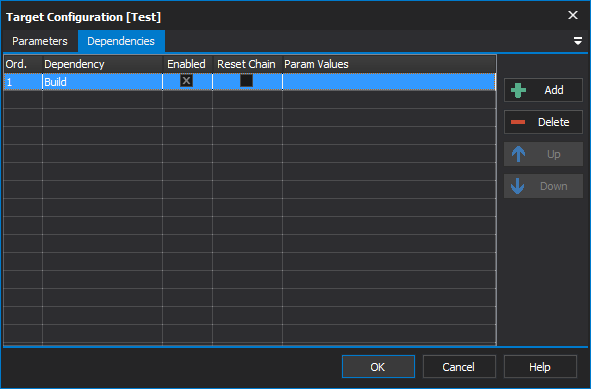

Actionlists renamed to Targets

ActionLists have been renamed to Targets. Targets can now also define dependencies, so you can for example define Clean, Build, Test, and have Test depend on Build. If you execute the Test target, and Build has not already been executed, it will be executed first before Test. Targets can be specified on the command line.

IDE Light theme



In FinalBuilder 7 and earlier, projects had a Main and an OnFailure (global error handler) actionlist. In FinalBuilder 8, projects just have a Default Target. Older projects will be imported such that the Main and OnFailure Targets are called from the Default Target inside a try/catch block.

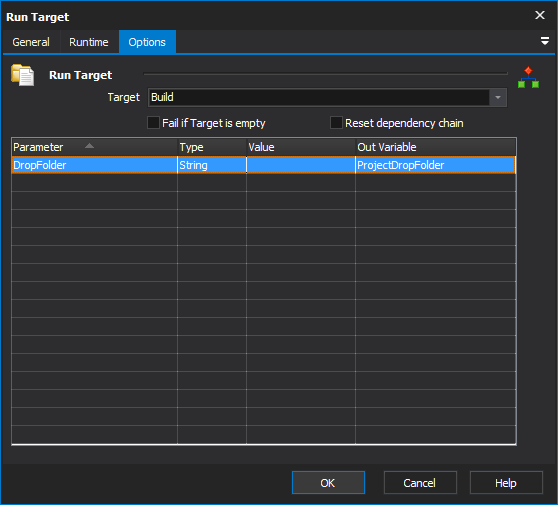

Run Target Action

You can now return values from Targets (ie out parameters) .

IDE Light theme

New Help System

The help has moved online in the form of a wiki. This enables us to do inline help updates without needing to ship new builds. The new help is still being worked on, lots of screenshots are missing etc..

Non Visible Changes

Stepping Engine

The stepping engine was rewritten to enable stepping into included projects, and to enable target dependencies. This, work, together with the new variables architecture is where the bulk of effort/time was spent in the FinalBuilder 8 development cycle.

Variables Architecture

The variables architecture and the expression evaluator were rewritten to resolve several corner case issues that we were not able to resolve in FinalBuilder 7. The expression evaulator has a new parser that will allow us to more easily extend the syntax in the future. The User variable namespace was removed, it caused too many problems with projects not running under other users, not running on the build server etc. Use Project variables instead.

Core Messaging

Changes to the messaging has allowed us to improve the performance of the stepping engine and logging, with much less thread switching. This also improved the IDE performance.

CLR Hosting

The minimum CLR version is now .NET 4.0 (ie FinalBuilder requires .net 4.0 to be installed).

Code Changes

In addition to the architectural changes, we also spent a lot of time refactoring the code, running static analysis tools over the source, looking for memory leaks, potential bugs etc. One of the results of this is reduced memory usage during a build compared to FB7. The FB8 IDE does use slightly more memory than the FB7 IDE at startup (mostly due to the heavy use of delphi generics), however the runtime memory usage is much lower.A large  part of the refactoring involved unit testing (we created a new unit test framework to suite our needs!) and creating a suite of integration tests.

FBCmd

The command line parameters have changed to be more consistent and easier to specify. You can also specify one or more targets to execute (when not specified, the default target is executed).

New Project File Formats

FinalBuilder has used an xml file format since version 1, however a common complaint over the years, has been that it is difficult to diff file versions. FinalBuilder 8 has tackled this in two ways.

A new DSL style project file format (.fbp8) is now the default format, it is very easy to diff.

project
begin
    projectid = {04710B72-066E-46E7-84C7-C04A0D8BFE18}
    target
    begin
        name = Default
        targetid = {E6DE94D6-5484-45E9-965A-DB69885AA5E2}
        rootaction
        begin
            action.group
            begin
                id = {D860420B-DE46-4806-959F-8A92A0C86429}
            end
        end
    end
end

A new xml format (.fbx8), much less verbose than the old format.




        {6A717C24-D00F-4983-9FD0-148B2C609634}

            Default
            {E6DE94D6-5484-45E9-965A-DB69885AA5E2}


                    {D860420B-DE46-4806-959F-8A92A0C86429}





Compressed project files (.fbz8) use the dsl format internally (compressed projects are just a zip file with a project.fbp8 inside it).

The default project file encoding is now UTF-8, which is more version control friendly (some version control systems treat utf-16 as binaries).

New Actions

There are no new actions at the moment, although several are in development, they will be added to the beta builds as they are completed.

How do I get the Beta?

Links to the beta downloads will be published to the FinalBuilder Downloads page.


What if I find a bug?

We have created a Beta forum on our forums, or you can email support (please added Beta to the subject). When reporting an issue, be sure to include the beta build number and details about your environment. Please test with the latest beta build before reporting bugs.

We are particularly keen for people to load up their existing projects from older (ie 7 or earlier) versions of FinalBuilder, save them in FB8 format, and load them again and confirm that everything loaded ok.


When will it be released?



When it's ready ;)
