VSoft Technologies Blogs - posts about our products and software development.

In December 2019, I blogged about a package manager for Delphi that I am working on. This post is a progress update that shows where it's at and what's left to do to get to v1.

DPM Recap

For those not familiar with what I am trying to achieve here, I highly recommend reading my original Delphi Package Manager RFC post. In that post I detailed my ideas, and some of the challenges that Delphi presents when compared to other development environments.

In December 2019, the bare bones of DPM were there. We had a command line tool and that was it. We were able to create packages, install packages (and their dependencies) and restore them (restore ensures all referenced packages are present). Oh and we could list the available packages in our package feed (a folder).

IDE Integration

In the last 13 months there were around 175 commits to the DPM repository. In that time I have added an IDE plugin (that works in Delphi XE2 to 10.4). This involved the creation of several custom controls (I wasn't able to bend any existing ones to work how I wanted it to).

In addition to the work in the project repository, I also published several useful libraries that I needed for this project. DPM is now bootstrapped, to build DPM you need DPM, as it requires several libraries that are referenced as dpm packages.

In Nov 2020 I published the first alpha release that included an installer (code signed by VSoft Technologies) for installing both the command line tool and the IDE plugin (single installer, you can choose which IDE versions to install for). The installer allows you to install for the current user, or for all users (requires elevation to install).

I also did a zoom presentation about DPM to the Melbourne chapter of the Australian Delphi Users Group - a recording of that (long) presentation can be found here.

Adding IDE support for DPM was a massive undertaking. I had very little experience in developing Delphi IDE plugins (using the tools api) - and there were lots of subtle changes between delphi versions, getting things working correctly in 12 versions of Delphi was not easy. In particular, with the later versions of Delphi IDE that use VCL themes, getting things to look right (ie like a native part of the IDE) was a challenge.

The above image shows the installed packages for one of the projects in the project group, you get to this view by right clicking on the project node, or the DPM Packages node in the Project tree.

Note the view only shows the directly installed packages, not the transient dependencies - those you can see in the project tree under the DPM Packages node.

Before you can use DPM in the IDE, you need to configure a package source (a folder where your package files will live)

This can be done fron the command line

dpm sources add -name=local -source=path to the folder you created

Or from the IDE Settings

Compile during install

The most recent updates added support for compiling packages during first install. Packages need to declare how to build in their dspec file, and dpm will use that and call msbuild to compile the packages if needed. DPM also records a bill of materials file (package.bom) in the package cache so that it can tell whether the package needs to be recompiled or not.

On first install, packages that are being compiled during the install process will take a little longer, but on subsequent installs or restores, the process is almost instant (a few ms).

Prior to adding this feature, building dpm on our Continua CI build agents took 13 minutes, much of which was taken up with compiling the dpm packages that it references (in particular, earlier versions of Delphi were very slow with spring4d). Since updating dpm on our agents with the new version, the entire build process for DPM (console app and 12 versions of the IDE plugin and the installer) takes less than 2 minutes.

Missing features

Project group support

When installing packages, the dependency resolution code does not know about other projects in the project group, or what packages and versions they reference. This will be a problem for packages that include design time components that need to be loaded - the IDE can only load 1 version of a design time package. This is what I am currently working on.

Design time packages

DPM does not currently install design time packages into the IDE. This is dependent on project group support, so it's next on the list after project group support.

Package Updates

The ability to detect when package updates are available and make it easy to install those updates. There's an Updates tab in the IDE but it's non functional at this time.

Package Repository

In it's current state, DPM only supports folder based package feeds. This works fine, but it does have some limitations

  • Limted search abilities - limted to searching on the package filenames.
  • You have to download packages to a folder.
  • Package Authors have to host the package files somewhere (mine are under releases on their github projects).

I have made a start on the Package Repository, but not a lot of progress since I'm focusing on the client site right now.

Q & A

Is it usable?

In it's current state, it's only usable for non visual libraries. As I mentioned, the DPM projects all use DPM themselves, and we have DPM actions in FinalBuilder for running the Pack and Restore commands.

If you use any of my open source libraries like DUnitX, Delphi Mocks etc, I have created packages for all of those libraries, and also created mirror projects (just for hosting the package files) for some other popular libraries like Spring4D.

I would encourage library authors in particular to take a look and provide feedback.

Where can we find it?

DPM is an open source project on GitHub, the installer can be found under Releases (under each release, there is an Assets dropdown section).

What versions of Delphi does it support?

Delphi XE2 to 10.4.2 - note that we compile with the latest updates installed for each compiler version.

Why is it taking so long?

Yes, someone asked that recently! This is a side project, free and open source. My primary focus is on running my business and working on our products (that keeps the lights on).

Can we sponsor the project?

Not right now, however it's something I'll look at in the future.

Can we help?

Absolutely. Fork the project on GitHub and clone it to your dev machine and spend some time getting to know the source code. Before making any pull requests, create an issue on github to discuss your ideas and make sure we on the same wavelength!

We use many third-party Delphi libraries to build FinalBuilder and Automise, and that brings plenty of issues when upgrading compiler versions. I've been using Delphi since 1995, both as a developer and as a component vendor, I have learned a thing or two about creating libraries that I would like to share. These are all ideas that make life easier for users, and make it easy to migrate from one version of Delphi to another.

There's no hard and fast rules on how Delphi Libraries are supposed to be structured, these are just my preferences and things I have learned over the years. Hopefully this will help new and existing library authors.

Folder Structure

Keep the Source and the Packages in separate folders, this makes it easier to find the correct packages to compile, e.g :

\Source
\Packages
\Demos

Under Packages, create a folder for each compiler version your library supports, e.g:

\Packages\Rad Studio XE8
\Packages\Rad Studio 10.0
\Packages\Rad Studio 10.1

Package Names

Please, do not put the Delphi version in the package project names.

Bad!!!

MyProjectRun_D10_4.dproj
MyProjectDesign270.dproj

Good

MyProjectRun.dproj
MyProjectR.dproj
MyProjectDesign.dproj
MyProjectD.dproj

Why not put the compiler version in the package project name you might ask? Well the answer is that it makes upgrading compiler versions a major pain for users who link their projects with Runtime Packages (yes, that includes us).

The reason is that when you compile a package, it creates a packagename.dcp file and that is what your project references. So, if your package name is MyPackageRun_D10_4 then that is what will be added to projects that use it.

package MyOwnPackage;
//...
requires
  rtl,
  vcl,
  MyPackageRun_D10_4,
  AnotherPackage_Sydney,
  YetAnotherPackage_D104,
//  ...


When Delphi 10.5 comes out, guess what the user has to do to upgrade their projects.... Yep, replace that all those package references with 10.5 versions (and the multitude of suffixes). Multiply that by a number of projects and a number of libraries (each with potentially multiple runtime packages) and you can see why this might be a pain.

Now you might say, but we don't want 15 versions of MyPackageRun.bpl laying about on users machines, and you would be right. The solution to this is a feature that has been around since Delphi 6 (2001) - LIBSUFFIX.

LIBSUFFIX

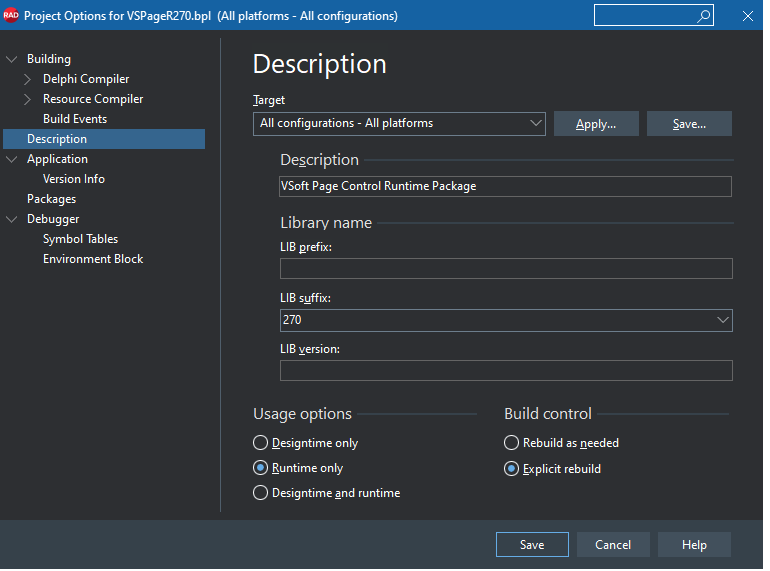

Setting LIBSUFFIX (on the Description section of project settings) will append the specified suffix to the BPL file name. So a suffix of _D10_4 will result in a package :

MyPackageRun_D10_4.bpl

however, the DCP file will still be generated as :

MyPackageRun.dcp

Remember it's the dcp file that our projects reference (for linking) - so by keeping the dcp file the same for all delphi versions, upgrading to a new compiler version just got a whole lot easier!

So when Delphi 10.5 comes out in the future, all I need to do is install the packages, no changes to my projects.

Update : Someone pointed out that Delphi 10.4.1 support LIBSUFFIX $(Auto) - this will use the Delphi defined PackageVersion - which for 10.4 is 270. This is a nice addition as it makes upgrading the package projects simpler. Of course if you don't like the PackageVersion suffix and use a custom one, then this is not for you.

Use Explicit rebuild, not Rebuild as needed

Have you ever encountered the error

E2466 Never-build package 'XXX' requires always-build package 'YYY'
What this means is, a package, set to Expicit rebuild, references another package, set to 'Rebuild as needed', and it's a pain in the proverbial. Rebuild as needed is also referred to as Implicit Build - in dpk's you will see it as
{$IMPLICITBUILD ON}
If that "Rebuild as needed" package is not part of your project group, guess what, you get to waste time closing and opening projects trying to get it to compile.

I'm sure someone will correct me on this, but I cannot see a good reason to have "Rebuild as needed" set. I suspect this is a hangover from before the Delphi IDE allowed you to specify Project Dependencies and it slows down builds.

Use Search Paths for includes

I often see includes with either hard coded paths, or relative paths like this :

{$I '..\..\MyDefines.inc'}


That's great, if the installer delivers the files in the right place - but they often don't - I hit this issue today, where the package just would not compile. I eventually figured out that the relative path was wrong.

There's a simple fix for this, and that is to remove the path in the $I statement, and use the Project Search Paths feature instead.

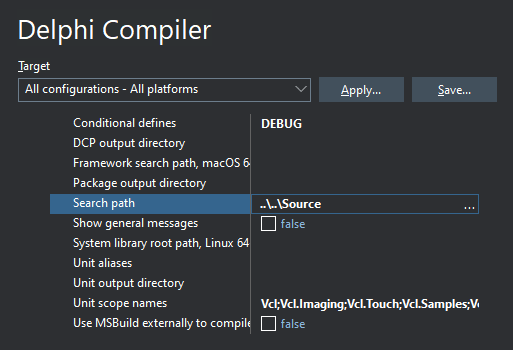

Search Paths

I have also seen libraries where there are mulitple copies of the include file and they are slightly different!

Mark packages as Runtime only or Designtime only

Some libraries have their packages marked as "Runtime and Designtime" (the default) - the impact of this is only minor, but it's a pet peeve of mine. The Delphi IDE (in recent versions at least) provides a nice indication of whether packages are runtime or designtime in the project tree, and for designtime packages, whether they are installed.

This makes it simple for me to determine which ones need to be installed or not.

Not Installed

Not Installed

Installed

Installed

Summing up

One of the major reasons people do not upgrade Delphi versions is because it's too hard to deal with the third party libraries and all the changes required just to get to the point of compiling. That eventually results in a lack of Delphi sales which results in a lack of investment in Delphi which feeds back into.... well you get the idea ;)

Making third party libraries easier to work with in Delphi has been a bit of a crusade for me, I've been working on this for a while now, and I'm getting closer to a solution - DPM - A package manager for Delphi - if you are a library author, I encourage you to take a look. For examples on how to create a package spec (dspec) take a look at our open source projects https://github.com/vsoftTechnologies/

We are delighted to announce that version 1.9.2 of Continua CI has passed through the beta and release candidate stages, and has now been released. Here is a reminder of the new features in v1.9.2:

Export and Import

Users with Configuration Edit permissions can now export one or more project configurations to a YAML or JSON file. This may be for backup, versioning or migration to another server.

The export wizard has a number of steps allowing selection of one or more configurations, and also any related repositories, variables and shared resources.

Export Wizard - Configuration Selection

The configuration details can be exported to YAML or JSON file formats, according to your preferences for readability and differencing.

Export Wizard - File Details

The resultant file is downloaded to your computer, allowing you to file it away until you need it.

Export Wizard - Downloaded File

Export Wizard - YAML

The import wizard also consists of several steps, allowing users with Project Edit permissions to upload a file, ...

Import Wizard - File Selection

choose which items in the file to import and whether to overwrite any existing matching items of create new items.

Import Wizard - Configuration Selection

The import runs in a transaction, so if any modified file content fails validation it will rollback...

Import Wizard - Import Failed

allowing you to make changes and retry.

Export Wizard - Import Complete

Requeuing Stages

Sometimes a build stage may fail due to external influences. It could be that a file server was offline, network connectivity was down, or a file was locked for access. If it has taken several long stages to get to this point, then having to run the whole build again from the start can be a pain.

The last stage of a completed build can now be requeued, providing that it has failed, stopped or errored, and the server workspace is intact.

If no parts of the server workspace have been removed by the cleanup process, then a Requeue Stage button will be shown after the last stage in the Stages list on the Build page.

Action list categories

This allows you to requeue and execute the stage again!

Action list search

You can also optionally make changes to the stage actions and requeue the stage with the latest changes.

Stages

Multiple Daily Cleanup Rules

Every build that is executed within Continua CI stores information in the server's workspace, such as artifacts and build logs, and entries in the database. These by-products are vital for executing your build process and tracking build information, however, they can also take up considerable disk space over time and have a negative impact on database performance. The cleanup settings define the shelf life for the build by-products.

Up until now, the cleanup settings have been quite limited - you could set up a single policy per configuration defining the build age and build limits for cleaning up either the database, the workspace, or both. Often, however you would want to cleanup the workspace files to save space, well before removing the build from the database. This update allows you to define multiple cleanup rules, with different shelf lives for each type of build by-product.

Cleanup rules

Each rule can include one or more by-product to clean up.

Cleanup rules dialog

Download the installers for Continua CI v1.9.2 from the Downloads page

We are delighted to announce a new beta release of Continua CI. We have added the following new features:

Export and Import

Administrators can now export one or more project configurations to a YAML or JSON file. This may be for backup, versioning or migration to another server.

The export wizard has a number of steps allowing selection of one or more configurations, and also any related repositories, variables and shared resources.

Export Wizard - Configuration Selection

The configuration details can be exported to YAML or JSON file formats, according to your preferences for readability and differencing.

Export Wizard - File Details

The resultant file is downloaded to your computer, allowing you to file it away until you need it.

Export Wizard - Downloaded File

Export Wizard - YAML

The import wizard also consists of several steps, allowing you to upload a file, ...

Import Wizard - File Selection

choose which items in the file to import and whether to overwrite any existing matching items of create new items.

Import Wizard - Configuration Selection

The import runs in a transaction, so if any modified file content fails validation it will rollback...

Import Wizard - Import Failed

allowing you to make changes and retry.

Export Wizard - Import Complete

Requeuing Stages

Sometimes a build stage may fail due to external influences. It could be that a file server was offline, network connectivity was down, or a file was locked for access. If it has taken several long stages to get to this point, then having to run the whole build again from the start can be a pain.

The last stage of a completed build can now be requeued, providing that it has failed, stopped or errored, and the server workspace is intact.

If no parts of the server workspace have been removed by the cleanup process, then a Requeue Stage button will be shown after the last stage in the Stages list on the Build page.

Action list categories

This allows you to requeue and execute the stage again!

Action list search

You can also optionally make changes to the stage actions and requeue the stage with the latest changes.

Stages

Multiple Daily Cleanup Rules

Every build that is executed within Continua CI stores information in the server's workspace, such as artifacts and build logs, and entries in the database. These by-products are vital for executing your build process and tracking build information, however, they can also take up considerable disk space over time and have a negative impact on database performance. The cleanup settings define the shelf life for the build by-products.

Up until now, the cleanup settings have been quite limited - you could set up a single policy per configuration defining the build age and build limits for cleaning up either the database, the workspace, or both. Often, however you would want to cleanup the workspace files to save space, well before removing the build from the database. This update allows you to define multiple cleanup rules, with different shelf lives for each type of build by-product.

Cleanup rules

Each rule can include one or more by-product to clean up.

Cleanup rules dialog

Download the installers for Continua CI v1.9.2 Beta from the Downloads page

Generally, at VSoft, we like to build. So we build every commit and this allows us to look back at our build history and see which changes caused the build to fail. We use manual stage promotion to prevent every build being released until we decide that it is ready to go.

Build promotion

Many teams like to trigger a build at the end of each day, or during the night, compiling the work for the day in one single package.

The obvious choice for this scenario is the Daily Trigger. This can be set to run a build at a specific time every day, or just weekdays - even just weekends for those with alternative lifestyles.

Build promotion

But what if the team is just having a design day, is off on a team building excursion or, perish the thought, a day of meetings! No commits are made, but the daily build still runs even though there are no changes. One possible solution is to use a Discard condition.

Discard condition

This will prevent the build running if there are no changes since the last build.

Build being discarded

Another option has been added to Continua CI recently. The Quiet Period setting on Repository Triggers now allows you to enter an End Time rather than an Interval.

Quiet period end time on repository trigger

Any builds triggered from a repository change are then queued right through the day until the specified end time. Any additional changes added to the configuration repositories during the day are added to the queued build, and when the end time comes up, the build executes on the latest changeset.

Build waiting on quiet period end time

If you're going home earlier than the end time and want stuff deployed already, you can swiftly end the quiet period at the click of a button. Using a repository trigger in this way means that you can ignore changes to some files, changesets with a specific comment, or commits from certain users.

Trigger with user exclusion

- like that hands-on manager who thinks of his commit count as a key performance indicator.

'When the PM fixes a bug' cartoon by commitstrip.com

Back in Feb 2019, I blogged about the need for a Package Manager for Delphi. The blog post garnered lots of mostly useful feedback and encouragement, but until recently I could never find a solid block of time to work on it. Over the last few weeks I've been working hard to get it to an mvp stage.

DPM is an open source package/library manager for Delphi XE2 or later. It is heavily influenced by Nuget, so the cli, docs etc will seem very familiar to nuget users. Delphi’s development environment is quite different from .net, and has different challenges to overcome, so whilst I drew heavily on nuget, DPM is not identical to nuget. I also took a close look at many other package managers for other development eco systems.

What is a Package Manager

A package manager provides a standard for developers to share and consume code. Authors create packages that other developers can consume. The package manager provides a simple way to automate the installation, upgrading or removal of packages. This streamlines the development process, allowing developers to get up and running on a project quickly, without needing to understand the (usually adhoc) way the project or organization has structured their third party libraries. This also translates into simpler build/CI processes, with less ‘compiles on my machine’ style issues.

Who and Why

DPM’s initial developer is Vincent Parrett (author of DUnitX, FinalBuilder, Continua CI etc). Why is discussed in this blog post.

DPM Status

DPM is still in development, so not all functionality is ready yet. At this time, it's at the stage where we I would encourage library authors to take a look and play with it and provide feedback (and perhaps get involved in the development). It's very much at a minimum viable product stage. Potential users are of course welcome to look at it and provide feedback, it's just that, well, there are no packages for it yet (there's some test packages in the repo, and I'll be creating ones for my open source libraries). .

What works

  • Creating packages
  • Pushing packages to a package source.
  • Installing packages, including dependencies
  • Restoring packages, including dependencies.

How do I use it

The documentation is at http://docs.delphipm.org

See the getting started guide.

The command line documentation can be found here.

The Source is on GitHub https://github.com/DelphiPackageManager/DPM

Is DPM integrated into the Delphi IDE

Not yet but it is planned. If you are a wiz with the open tools api and want to contribute then let us know.

Is there a central package source

Not yet but it is planned. At the moment, only local folder based sources are supported. The client code architecture has a provision for http based sources in the future, however right now we are focused on nailing down the package format, dependency resolution, installation, updating packages etc.

Is my old version of delphi supported

Maybe, see here for supported compiler versions. All target platforms for supported compiler versions are supported.

What about C++ Builder or FPC

see here

Does it support design time components

Not yet, but that is being worked on.

How does it work

See this page

In this post, we'll take a look at the various options for managing and updating Version Info in Delphi projects using FinalBuilder.

Windows Version Info Primer

Windows Version Info (ie the version info shown in explorer) is stored in a VERSIONINFO resource inside the executable (exe or dll). These resources are created by defining a .rc file, and compiling with either the windows resource compiler (rc.exe) or Delphi's provided resource compiler (brcc32 or cgrc depending on the delphi version). This results in a .res file, which can be linked into exe at compile time buy referencing it in the source code, e.g :

{$R 'myresource.res'}

I highly recommend familiarising yourself with the VERSIONINFO resource type and it's parts.

Delphi IDE Support for Version Info

The Delphi IDE creates a [YourProjectName].res file next to the dpr or dpk when you create a new project. This is where the IDE will place the VERSIONINFO resource when you enable the option to "Include version information in project".  When you compile the project in the IDE, if needed the IDE will regenerate this res file with updated version info before it is linked into the executable.  For exe's, this resource file also includes the MAINICON resource (the icon shown in explorer).

You do not have to use this feature, you can leave the option turned off and manage the version info yourself, by creating your own resource script (.rc) with a VERSIONINFO structure,  and compiling it and referencing the resulting .res file in your source code. You can even just reference the .rc file

{$R 'myresource.res' 'myresource.rc'}

and the IDE will compile the rc file and link in the resulting res file. The caveat to this technique is that the command line compiler (dcc32, dcc64 etc) does not support this.

If your binary doesn't have version info, or has incorrect version info, it's typically because :

1) The version info  resource wasn't referenced in the source and wasn't linked in
2) There are duplicate VERSIONINFO resources linked, windows will pick the first one it finds.
3) You set the version info on the wrong IDE configuration (more on this below).

The Delphi IDE, along with the dproj file (which is an msbuild project file), uses a convoluted configuration inheritance mechanism to set project properties, including version info. Many a developer has been caught out by this scheme, setting the version info at the wrong node in the heirachy, resulting in no version info in their executables. There have also been issues with dproj files that have been upgraded through multiple versions of delphi over the years.

Using FinalBuilder

In the development environment, the version info usually doesn't matter too much, but for formal releases it's critical, so it's best to leave setting/updating your version info  to your automated build tool or your continuous integration server. In FinalBuilder we have invested a lot of time and energy to making version info work correctly with all the different versions of delphi, dealing with the vagaries and subtle differences with each version (and there are many!).

On the Delphi action in FinalBuilder, the Version Info tab presents the version info in a similar way to old versions of delphi IDE did (a much nice ui that the current version imho). This ui allows you control all the various version info properties (and there are a lot!). Note that these will only take effect if you have the "Regenerate resource" option checked on the Project tab (ie, regenerate yourproject.res).

Note that the Major, Minor, Release and Build fields are number spin edits, and cannot take FinalBuilder variables. That can easily be worked around with some simple scripting, in the BeforeAction script event  (javascript):

Another option is to use Property Sets to provide the source of the Version Info. Property sets are especially useful when you have multiple actions that need the same version info, or at least to share the same version numbers. Creating a Property Set is trivial, just drop a PropertySet Define action on your target, before the Delphi Action. In the PropertySet Define action, select Win32 Version Info to manage all version info properties, or Win32 Version Numbers to have the property set just manage the major, minor, release and build numbers.

To set the property set values, add a PropertySet Assign Values action before the Delphi action.

Then in the Delphi action it's a simple task to select the property set in the version info tab

Notice that the version number fields are disabled, since they are now provided by the property set. If you choose the Win32 Version Info property set type, more fields are disabled.

One last thing I should mention, is that along with the Version Info and the MAINICON, the project.res file also typically (well for windows at least) contains the manifest file. I recommend you look at the Resource Compiler tab, where it lets you choose which resource compiler to use (more useful in older versions of delphi, where brcc32 didn't cope with some hicolor icon types) and specify the manifest file. I discussed windows manifest files a few years ago in this blog post.

This new beta release includes substantial improvements to the expressions engine including new several expressions objects and functions. We have also made some updates to the stage editor, implemented automatic report generation for some reporting actions, and added several new deployment actions providing support for Docker, Azure, SQL packages, File Transfer and SSH.

Continue reading for details of all the new features.

Enhanced expressions engine

The expression engine in Continua CI evaluates expression objects and variables denoted with $ and % characters. It also provides auto-completion suggestions when typing such expressions into expression fields. This has now been overhauled to include function return types, chaining of functions, nesting functions as function parameters, selection and filtering of collections and many improvements to expression parsing. We have added several new functions, objects and collections to give access to more values and allow you to manipulate those values.

Expression in Set Variable action list categories

You can now, for example, use the following expression to get the time that the penultimate build stage finished;

 $Build.Stages.Item($Build.Stages.Count.Decrement()$).Finished.ToLongTimeString()$

combine the result of multiple flags by chaining functions, as in this expression;

$Build.HasErroredStages.Or($Build.HasFailedStages$).Or($Build.HasWarnings$)$

or use the following expression to get the comment of the first build changeset in the build containing the word 'merge' (ignoring case):

$Source.SuperFancyRepo.Changesets.First(Comment, Contains, "merge", true).Comment$

We have also included functions to get the value of a variable as a type, allowing you to use properties or functions on the variable value.

You can, for example, now use the following expression to get the abbreviated day of the week from a variable entered using a DateTime prompt;

$Utils.GetDateTime(%DateTimeTest%).DayOfWeek.Substring(0, 3)$

use expressions to do some more complex maths on a Numeric variable;

  $Utils.GetNumber(%NumberTest%).Floor().Modulus(10).Multiply(100)$

or get the first selected value in a checkbox select variable with this expression:

$Utils.GetString(%CheckboxSelectTest%).SplitWithQuotes(",").First()$

You can see a full list of available expression objects, collection and functions on the Expression Objects page of the documentation.

Auto-completion has also been revamped so show more information in the suggestions list. A list of parameters with types is now shown for each for each function. Descriptions are also displayed on mouse over for each object, collection and function in the suggestions list. We have also removed some annoying quirks with expression auto-completion where the cursor would end up in the wrong place or end characters would be added in the wrong place.

Stage editor changes

As Continua CI matures, the number of actions (and categories) has increased. This can make it more difficult to find the action you need. We have therefore redesigned the action list.

The list of categories has been pulled up into a drop down menu with all actions listed below by default.

Action list categories

The filtering of actions using the search box is now fuzzier, using partial and keyword matches.

Action list search

Stage buttons now resize (up to a maximum) to fit the stage name. If you stage names are short, this means you can fit more stages into your browser width. If your stage names are long, then the text will no longer escape the stage borders. Really long stage names which do not fit the maximum stage button size will now be truncated.

Stages

All actions now include a Validate button to allow you to check that all fields have valid values before saving.

New premium deployment actions

We have added a set of premium actions which can be used for deploying the results of your build. The following actions can only be used if you have purchased one or more concurrent build licenses.

File Transfer action: This allows you to upload files to a remote server via FTP, FTPS and SFTP.

SSH Run Script action: This can be used to run a script or list of commands on an SSH server.

Azure actions: Several new actions are available to allow you to deploy web apps, function apps, files and blobs to Azure.

Azure actions

  • Create Azure Resource Group
  • Delete Azure Resource Group
  • Create Azure App Service Plan
  • Delete Azure App Service Plan
  • Create Azure Web App
  • Deploy Azure Web App
  • Upload Azure Web App
  • Control Azure Web App
  • Delete Azure Web App
  • Create Azure Function
  • Deploy Azure Function
  • Delete Azure Function
  • Create Azure Storage Account
  • Get Azure Storage Account Keys
  • Delete Azure Storage Account
  • Create Azure Storage Container
  • Delete Azure Storage Container
  • Upload Azure Blob
  • Delete Azure Blob
  • Create Azure File Share
  • Delete Azure File Share
  • Create Azure Directory
  • Delete Azure Directory
  • Upload Azure File
  • Delete Azure File

Docker actions: These new actions are available to allow you to build, deploy and manage Docker containers.

  • Docker Build
  • Docker Command
  • Docker Commit
  • Docker Inspect
  • Docker Pull
  • Docker Push
  • Docker Run
  • Docker Stop
  • Docker Tag

SQL Package actions: These new actions allow you to create, update and export SQL Server database schemas and table data.

  • SQL Package Export
  • SQL Package Extract
  • SQL Package Import
  • SQL Package Publish
  • SQL Package Script

Other new and updated actions

Extent Reports: Wrapper for the Extent Reports CLI for reporting on NUnit results.

ReportGenerator: Updated to include all the latest command line options.

Rename Directory: Does what it says on the tin..

Automatic reporting

Currently, there are a few steps to configure when setting up a report. You have to ensure that the report files are included in the Workspace Rules and that the report is defined in the Reports section of the configuration wizard. Furthermore, it's also recommended to include the report files in the artifact rules so that you can control when they are cleaned up.

To simplify this process, we have added a new option to automatically register the report with the server to actions which generate reports (FinalBuilder, ReportGenerator and the new Extent Reports action). Ticking this option shows a new tab where you can enter the name, description and run order of the report. When a stage completes, any report files generated by actions where this option is turned on, will automatically be copied to the server workspace. The main report file will be registered as a report and all report files will be registered as artifacts.

FinalBuilder automatic report option

Download the installers for Continua CI v1.9.1 Beta from the Downloads page

Delphi/Rad Studio desperately needs a proper package/library/component manager. A package manager provides a standardized way of consuming third party libraries. At the moment, use of third party libraries is very much adhoc, and in many cases this makes it difficult to move projects between machines, or to get a new hire up and running quickly.

Other developement environments, like the .net and javascript eco systems, recognised and solved this problem many years ago. Getting a .net or javascript project up an running, in a new working folder or new machine is trivial.

With Delphi/Rad Studio, it's much harder than it should be. In consulting work, I've made it a point to see how clients were handling third party code, and every client had a different way. The most common technique was... well, best described as adhoc (with perhaps a readme with the list of third party products to install). Getting that code compiling on a CI server was a nightmare.

Existing Package Managers

Embarcadero introduced their GetIt package manager with XE8, and the GetIt infrastructure has certainly has made the installation of RAD Studio itself a lot nicer. But as a package manager for third party libraries, it comes up short in a number of areas.

There is also Delphinus, which is an admirable effort, but hasn't gotten much traction, possibly due to it being strongly tied to github (you really need github account to use it, otherwise you get api rate limiting errors).

Rather than pick apart GetIt or Delphinus, I'd like to outline my ideas for a Delphi package manager. I spend a lot of time working with .net (nuget) and javascript (npm, yarn), so they have very much influenced what I will layout below.

I have resurrected an old project (from 2013) that I shelved when GetIt was announced, and I have spent a good deal of time thinking about package management (not just in Delphi), but I'm sure I haven't thought of everything, I'd love to hear feedback from people interested in contributing to this project, or just potential users.

Project Ideals

These are just some notes that I wrote up when I first started working on this back in 2013, I've tried to whip them into some semblance of order for presentation here, but they are just just rough outline of my ideas.

Open Source

The Project should be Open Source. Of course we should welcome contributions from commercial entities, but the direction of the project will be controlled by the community (ie users). The project will be hosted on GitHub, and contributions will be made through Pull Requests, with contributions being reviewed by the Steering committee (TBA).

Public Package Registry

There will be a public website/package server, where users can browse the available packages, and package authors can upload packages. This will be a second phase of the project, with the initial phase being focused on getting a working client/package architecture, with a local or network share folder for the package source.

The package registry should not be turned into a store. Once a public package registry/server is available, evaluation packages could be be allowed, perhaps by providing a fee (web hosting is not free). Commercial vendors will of course be able to distribute commercial packages directly to their customers, as the package manager will support hosting of packages in a shared network or local directory. Package meta data will include flags to indicate if the packages are commercial, eval or free/open source. Users will be able to decide which package types show up in their searches.

Package Submission

Package submission to the public registry should be a simple process, without filling in and signing and faxing of forms! We will follow the lead of nuget, npm, ruby etc on this. There should be a dispute process for package names, copyright infringement etc. There will also be the ability to assign ownership of a package, for example when project ownership changes.

Package Authors will be able to reserve a package prefix, in order to prevent other authors from infringing on their names or copyrights. For example, Embarcadero might reserve Emb. as their prefix, TMS might reserve TMS. as theirs. (of course I'm hoping to get both on board). The project will provide a dispute resolution process for package prefixes and names.

Delphi specific challenges

Delphi presents a number of challenges when compared to the .net or nodejs/javascript world.

Compatibility

With npm, packages contain source (typically minimized and obfuscated) which is pure javascript. Compatibility is very high.

With Nuget, packages contain compiled (to .NET IL) assemblies. A package might contain a few different versions, that target different the versions of the .net framework. Again, compatibility is pretty good, an assembly compiled against .net 2.0 will work on .net 4.7 (.net core breaks this, but it has a new compatibility model, netstandard).

If we look at Delphi, binary compatibility between Delphi compiler versions is pretty much non existent(yes, I know about 2006/7 etc). The dcu, dcp and bpl files are typically only compatible with the version they were compiled with. They are also only compatible with the platform they were generated for (so you can't share dcu's between 32 and 64 bit windows, or between iOS and Android). So we would need to include binaries for each version of Delphi we want our library to support. This also has major implications for library dependencies. Where as npm and nuget define dependencies as a range of versions, a binary dependency in Delphi would be fixed to that specific version. There is a way to maintain binary compatibility between releases, provided the interfaces do not change, however exactly what the rules are for this is hard to come by, so for now we'll ignore that possibility.

That limits the scope for updating to newer versions of libraries, but that can also be overcome by including the source code in package, and providing on the fly compilation of the library during install. My preference would be for pre-compiled libraries, as that speeds up the build process (of course, since that's an area I have a particular interest in). In Continuous Integration environments, you want to build fast and build often, rebuilding library code with each CI build would be painful (speaking from experience here, 50% of time building FinalBuilder is building the third party libraries).

There's also the consideration of Debug vs Release - so if we are including binaries, compiled for Release would be required, but Debug optional? The size of a package file could be problematic. If the package contains pre-compiled binaries for multiple compiler versions, it could get rather large. So perhaps allow for packages that either support a single compiler version, or multiples? The compilers supported would be exposed in the package metadata, and perhaps also in the package file name. Feedback, ideas around this would be welcome.

Package files would be (like with other package managers), a simple zip file, which include a metadata (xml) file which describes the contents of the package, and folders containing binaries, source, resources etc. Packages will not contain any scripts (ie to build during install) for security reasons (I don't want to be running random scripts). We will need to provide a way to compile during install (using a simple dsl to describe what needs to be done), this still needs a lot of thought (and very much involves dependencies).

Library/Search Paths

Say goodbye to the IDE's Library path. It was great back in 1995, when we had a few third party libraries and a few projects and we just upgraded the projects to deal with library versioning (just get on the latest). It's simply incompatible with the notion of using multiple versions of the same libraries these days.

I rarely change major versions of a library during the lifespan of a major release of my products, I might however take minor updates for bugfixes or performance improvements. The way to deal with this is simply to use the Project Search path. Project A can use version 1 of a library, Project 2 can use version 9, all quite safely (design time components do complicate this).

Where a project targets multiple platforms, installing a package should install for all platforms it supports, but it should be possible for the user to specify which platforms they need the package installed for.

Design time Component Installation

The Rad Studio IDE only allows one version of a design time package to be installed at a time. So when switching projects, which might use different versions of a component library, we would need a system that is aware of component versions, and can uninstall/install components on the fly, as projects are loaded.

I suspect this will be one of the biggest project hurdles to overcome, it will requires someone with very good open tools api knowledge (ie, not me!).

Dependencies

Libraries that depend on other libraries will need to specify those dependencies in a metadata file, such that they can resolved during installation. As I mentioned above, binary compatibility issues make dependency resolution somewhat more complicated, but not insurmountable. The resolution algorithm will need to take into account compiler version and platform. The algorithm will also need to handle when a package is compiled from source, for example, binary only packages should not be allowed to depend on source only packages (to ensure compatibility). If we end up with install time package compilation, then some serious work will be needed on the dependency tree algorithm to work our what else needs to be done during install (ie, do any dependencies need to be recompiled?).

This is certainly more complicated than other platforms, and a significant amount of work to get right (ps, if you think it isn't, you haven't considered all the angles!)

General Considerations

Package Install/Restore

The user should be able to choose from a list packages to install. When installing the package, this would be recorded either in the dproj, or a separate file alongside the drproj. The install process will update the project search paths accordingly. Package meta data would control what gets added to the search paths, my preference would be for 1 folder per package, as that would keep the search path shorter which improves compile times.

When a project is loaded, the dproj (or packages config file) would be checked, and any missing packages restored automatically. This should also handle the situation where a project is loaded in a different IDE version.

Security

We should allow for signing of packages, such that the signatures can be verified by the client(s). Clients should be able to chose whether to only allow signed packages, or allow signed and unsigned, and what to do when signature verification fails. This will allow users certainty in the authenticity and integrity of the package (ie where it comes from and whether it's been modified/tampered with).

Clients

It is envisaged that will be at least 2 clients, a command line tool, and a Rad Studio IDE plugin. Clients will download packages, add those packages to project/config search paths. A local package cache will help with performance, avoiding repetitive package downloads and also reduce disk space demands. The clients will also detect available updates to packages, and package dependency conflicts.

Command line Client

The command like tool will be similar to nuget or npm, which provide the ability to create packages, install or restore missing packages, update packages etc. The tool should allow the specification of compiler versions and platforms, as this is not possible to detect from the dproj alone. This is where the project is currently focused (along with the core package handling functionality).

RAD Studio IDE Client

An IDE plugin client will provide the ability to search for, install, restore, update or remove packages, in a similar manner to the Nuget Visual Studio IDE support (hopefully faster!). This plugin will share the core code with the the command line client (ie, it will not call out to the command line tool). I have not done any work on this yet (help wanted).

Delphi/Rad Studio Version Support

Undecided at the moment. I'm developing with XE7, but it's possible the code will compile with earlier versions, or be made to compile with minor changes.

Summary

Simply put, I want/need a package manager for Delphi, one that works as well as nuget, npm, yarn etc. I'm still fleshing out how this might all work, and I'd love some feedback, suggestions, ideas etc. I'd like to get some people with the right skills 'signed up' to help, particularly people with open tools api expertise.

Get Involved!

I have set up a home for the project on GitHub - The Delphi Package Manager Project - RFC. We'll use issues for discussion, and the wiki to document the specifications as we develop them. I have created a few issues with things that need some dicusssion. I hope to publish the work I have already done on this in the next few days (needs tidying up).

Today we released a FinalBuilder 8 update with Visual Studio 2019 and MSBuild 16 Preview support. So far, for the most part Visual Studio 2019 seems to operate (well, from our point of view) pretty much the same as 2017. There were some changes to the MSBuild location, but other than that it all seems to work fine. Since it's based on the preview, it's subject to change and or breakage at any time.
